H type Rearing Chicken Cage 224 birds
Rearing Chicken Cages: It’s Specially designed and manufactured for rearing chicken.Item: XFH4-192,Tiers:4-tiers,Cell Dimension：1200*600*400mm,Capacity:224birds
Rearing Chicken Cage 4 Tier H type 224 birds
►Rearing Chicken Cages 4 tier H type 192 birds
The demention of pullet cages: 1200*1229*2772 mm; breeding area per cell: 3600 cm²,and Number of accommodation will be 12 birds of rearing chicken,The cage structure is reasonable, small area, simple installation, It should be one completed set.Which is a combination of cage wire mesh, H frame stand, water drinking line and chicken food line. suitable for medium and large-sized farmers
|Item||XFH4-224||Chicken Area||325 |
|Cage width |
|Chicken food Area||5.0 |
|Cells per set||16||Tiers||4|
|Cell Area||4550 cm²||Capacity||224|
►Performance Rearing Chicken Cages :
2. It is convenient to observe the growth of chicks, which is convenient for grouping and selection.
3. Automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks.
4. The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.
5. Chicken feeding per unit area has increased by 50%-100%.
6. The pressure regulator can adjust the water pressure to a certain amount, and the water supply of each nipple drinker is evenly distributed to ensure sufficient water supply for the chicks.
Structural Characteristics of Rearing Chicken Cages
►Rearing Chicken Cages wire mesh :
consists of bottom, top, spacedcage mesh,door and special card wire.
- Weaving process: First welding and then bending
- Surface:Galvanized or as your request
- Shape: “H” type
- Capacity: 224 birds/set
- Usage: cage for broiler breeding from one days old
- Advantages: smooth surface, good elasticity, high strength, and so on.
►Frame of Rearing Chicken Cages :
- Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
- Weaving process: cutting, stamping, bending, welding, forming.
- Advantages: strong, sturdy and smooth
- Years of use: 20-25 years
►Water drinking line:
- Highly precise stainless steel Ball
- High sensitivity ,360 ̊ Active sealed stem
- No leakage guarantees dry of chicken manure
- Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
- 25# PVC round pipe
►Feeder though for Rearing Chicken Cages:
- Color: white ,green ,red or you request
- Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
- Characteristics: The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.durable, transport does not occupy the place, will not damage.The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food
►Front water Supply for Rearing Chicken Cages:
- In front of poultry house there is a filter for water cleaning , a medicator and water meter
- Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
- The pressure reglator it can adjust pressure at the outlet and has a recoil function
Professional For Rearing Chicken Cages
►The Rearing Chicken Cages is application range for 1 day to 90 days broiler chicken
- Characteristic: It’s Specially designed and manufactured for rearing chicken. 1-30days baby chicks feeding in the middle floor cages, 30-50days growing chicks in the top floor cages and The bottom of the cages are for rearing broilers 50-90 days
Comparative Analysis Rearing Chicken Cages

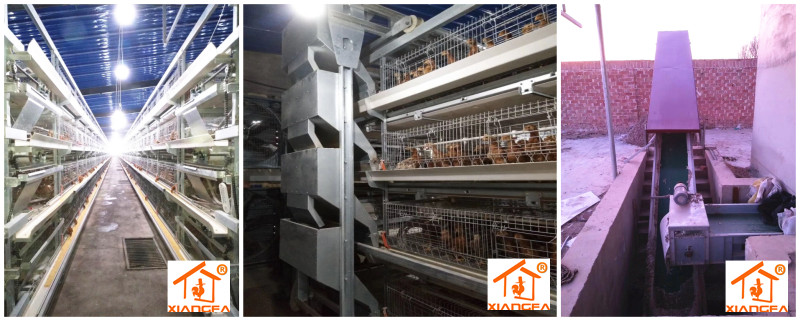

Related Rearing Chicken Cages equipment
►The following machine shoule be customer request:
- It can be equipped with auto the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture matic feeding equipment, automatic water supply system and automatic cleaning system to realize the specialization and automation of equipment.
►Packing and delivery of rearing Chicken Cages :
- The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
- The Frame stands make five five pcs per bundle but they are bulk no package.
- Some fittings are in plastic bags or cartons
- LCL: first packed with plastic film then shipping by pallets
- FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
- The chicken equipment by pallets.
- Others packing and the poultry equipment according to customer requirement
- Battery chicken cage transportation
