Chicken Rearing Cages 240 Birds

$320.00 $168.00

Rated 0 out of 5
(be the first to review)

Pullet Chicken Cages A type .They are have two design 3 tiers and 4 tiers .It is a professional design and production of pullet chicken, It has 18 or 24 cells

Description

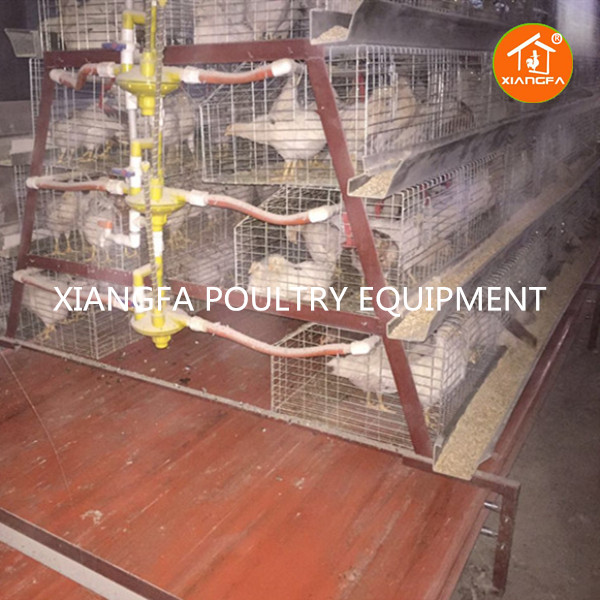

Chicken Rearing Cages 4 tiers A type 240 birds

►Chicken Rearing Cages 240 birds 4 tiers “A” Type.

It is a professional design and production of rearing chickens, It has 24 cells and 240 birds capacity,structure simple installation easy,suitable for medium or bigger-sized farmers,,It  should be one completed set.Which is a combination of cage wire mesh, A frame stand, water drinking line and chicken food line.
Tiers 4-tiers Nest /set 24
Item XFA4-240 Area/nest
cm²
3250
Cage Dimension 195*50*35
cm
Area/bird
cm²
325
Capacity/set 240 birds Area food/bird
cm
10.8

Performance:

1. Zinc-plated low carbon steel wire has strong tensile and compressive properties.
2. It is convenient to observe the growth of chicks, which is convenient for grouping and selection.
3. Automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks.
4. The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.
5. Chicken feeding per unit area has increased by 50%-100%.
6. The pressure regulator can adjust the water pressure to a certain amount, and the water supply of each nipple drinker is evenly distributed to ensure sufficient water supply for the chicks.

Structural characteristics of Chicken Rearing Cages mesh

►Chicken cage wire mesh : consists of bottom, top, spacedcage mesh,door and special card wire.
  • Material: Q235 high quality unannealed steel wire
  • Weaving process: First welding and then bending
  • Surface treatment: Hot dip or electroless galvanizing
  • Advantages: smooth surface, good elasticity, high strength, and so on.
►A frame of Chicken Rearing Cages :
  • Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
  • Weaving process: cutting, stamping, bending, welding, forming.
  • Advantages: strong, sturdy and smooth
  • Years of use: 20-25 years
►Water drinking line:
  • Highly precise stainless steel Ball
  • High sensitivity ,360 ̊ Active sealed stem
  • No leakage guarantees dry of chicken manure
  • Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
  • 25# PVC round pipe
►Feeder though for Chicken Rearing Cages:
  • Color: white ,green ,red or you request
  • Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
  • Characteristics: The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.durable, transport does not occupy the place, will not damage.The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food
►Front water Supply for Chicken Rearing Cages
  • In front of poultry house there is a filter for water cleaning , a medicator and water meter
  • Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
  • The pressure reglator it can adjust pressure at the outlet and has a recoil function

The accessories for Chicken Rearing Cages 4 tiers A type 240birds

►The Chicken Rearing Cages is application range  for 1 day to 90days baby egg chicks or broiler chicken
  • Characteristic: It’s Specially designed and manufactured for egg chicks. 1-30days baby chicks feeding in the middle two floor cages, 30-50days growing chicks in the top floor cages and The bottom of the cages are for rearing chicken 50-90 days
Accessories Per Set  cages
Tiers 4-tiers Water drinker 12 pcs
Feeder 12 pcs Water nipple with cups 48 pcs
Plastic mesh 12 pcs Feeder though 16 m
Bin for installtion 1000 pcs Water pipe 16 m
Acceseries of cage raised chicken cages

Comparative Analysis  Chicken Rearing Cages


Related Chicken Rearing Cages equipment

►The following machine shoule be customer request:
  • It can be equipped with auto the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture matic feeding equipment, automatic water supply system and automatic cleaning system to realize the specialization and automation of equipment.

 ​►Packing and delivery of Chicken Rearing Cages:

  • The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
  • The Frame stands  make five five pcs per bundle but they are bulk no package.
  • Some fittings  are in plastic bags or cartons
  • LCL: first packed with plastic film  then shipping by pallets
  • FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
  • The chicken equipment by pallets.
  • Others packing and the poultry equipment  according to customer requirement
  • Battery chicken cage transportation
Delivery of Cage Raaised Chickens
