Broiler Rearing Cage 96 Birds

$320.00 $280.00

Rated 0 out of 5
(be the first to review)

Hebei xiangfa Poultry equipment Co., Ltd.

  • PAYMENT TERMST / T,L / C,Westerm Union,MoneyGram

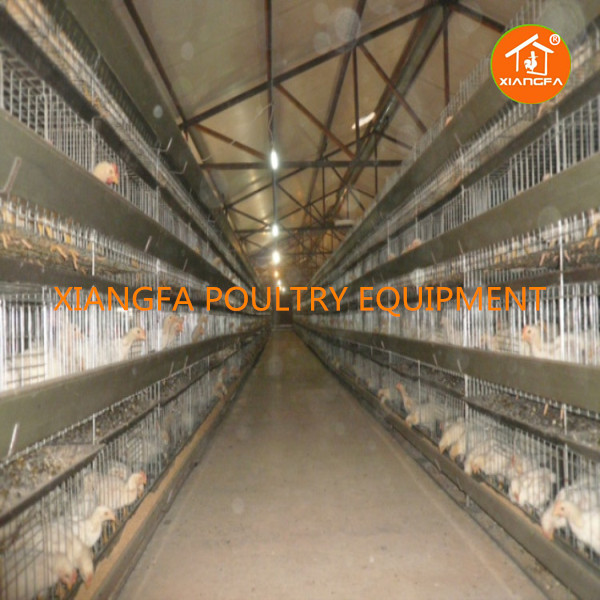

Broiler Rearing Cages 96 birds 4 tiers H type

►Broiler Rearing Cages 96 birds 4 tiers H type. It is a professional design and production of rearing chickens, The chicken coop is one piece structure,  simple installation, suitable for small and medium-sized farmers, It has 8 cells and 96 birds capacity,It  should be one completed set.Which is a combination of cage wire mesh, H frame stand, water drinking line and chicken food line.
Item XFH4-96 Chicken Area 408
Cage Dimension 140*70*180
Chicken food Area 5.9
Cells per set 8 Tiers 4
Cell Area 4900 cm² Capacity 96


1. Zinc-plated low carbon steel wire has strong tensile and compressive properties.
2. It is convenient to observe the growth of chicks, which is convenient for grouping and selection.
3. Automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks.
4. The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.
5. Chicken feeding per unit area has increased by 50%-100%.
6. The pressure regulator can adjust the water pressure to a certain amount, and the water supply of each nipple drinker is evenly distributed to ensure sufficient water supply for the chicks.

Structural Characteristics of Broiler Rearing Cages

►Broiler rearing cages wire mesh : consists of bottom, top, spaced cage mesh,door and special card wire.
  • Material: Q235 high quality unannealed steel wire
  • Weaving process: First welding and then bending
  • Surface treatment: Hot dip or electroless galvanizing
  • Advantages: smooth surface, good elasticity, high strength, low egg breaking rate and so on.
►A frame of Broiler Rearing Cages :
  • Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
  • Weaving process: cutting, stamping, bending, welding, forming.
  • Advantages: strong, sturdy and smooth
  • Years of use: 20-25 years
►Water drinking line:
  • Highly precise stainless steel Ball
  • High sensitivity ,360 ̊ Active sealed stem
  • No leakage guarantees dry of chicken manure
  • Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
  • 25# PVC round pipe
►Feeder though for Broiler rearing cages:
  • Color: white ,green ,red or you request
  • Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
  • Characteristics: The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.durable, transport does not occupy the place, will not damage.The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food
►Front water Supply for Broiler rearing cages:
  • In front of poultry house there is a filter for water cleaning , a medicator and water meter
  • Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
  • The pressure reglator it can adjust pressure at the outlet and has a recoil function

The accessories for Broiler rearing cages 4 tiers H type 96 birds

►The Broiler Rearing Cages is application range  for 1 day to 80days baby egg chicks or broiler chicken
  • Characteristic: It’s Specially designed and manufactured for egg chicks. 1-20 days baby chicks feeding in the middle two floor cages, 25-40 days growing chicks in the top floor cages and The bottom of the cages are for rearing chicken 50-80 days
    Accessories Per Set Broiler  cages
    Tiers 4-tiers Water drinker 4 pcs
    Feeder 4 pcs Water nipple with cups 16 pcs
    Plastic mesh 4 pcs Feeder though 6 m
    dung tray broiler 8  pcs Water pipe 6 m
    Acceseries of Broiler rearing cages

Comparative Analysis Broiler rearing cages

 ​►Packing and delivery of  broiler rearing cages:

  • The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
  • The Frame stands  make five five pcs per bundle but they are bulk no package.
  • Some fittings  are in plastic bags or cartons
  • LCL: first packed with plastic film  then shipping by pallets
  • FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
  • The chicken equipment by pallets.
  • Others packing and the poultry equipment  according to customer requirement
  • Battery chicken cage transportation
Delivery of Cage Raaised Chickens
