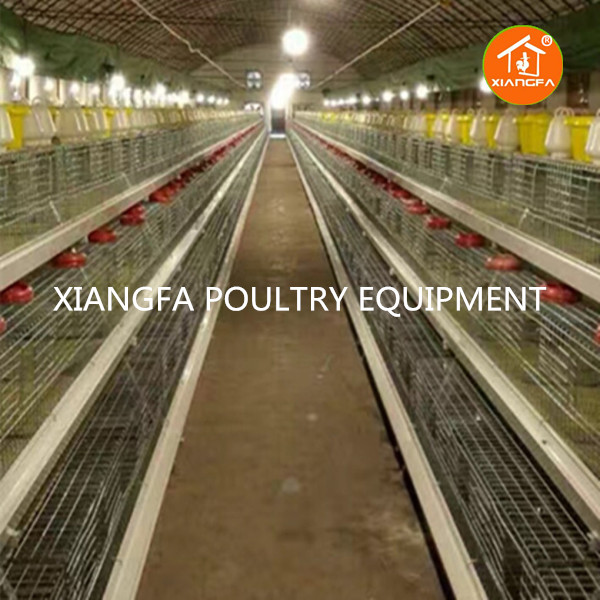

Cage Raise Chicken 180 Birds
Cage raised chicken cages It’s Specially designed and manufactured for egg chicks. 1-30days baby chicks feeding in the middle floor cages, 30-50days growing
Cage Raised Chickens 3 tiers A type 180birds
►Cage Raised Chickens 180 birds 3tiers “A” Type.
It is a professional design and production of rearing chickens, It has 18cells and 180birds capacity,structure simple installation easy,suitable for medium or bigger-sized farmers,,It should be one completed set.Which is a combination of cage wire mesh, A frame stand, water drinking line and chicken food line.
|Capacity/set||180 birds||Area food/bird
2. It is convenient to observe the growth of chicks, which is convenient for grouping and selection.
3. Automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks.
4. The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.
5. Chicken feeding per unit area has increased by 50%-100%.
6. The pressure regulator can adjust the water pressure to a certain amount, and the water supply of each nipple drinker is evenly distributed to ensure sufficient water supply for the chicks.
Structural characteristics of cage raised chicken cage mesh
- Material: Q235 high quality unannealed steel wire
- Weaving process: First welding and then bending
- Surface treatment: Hot dip or electroless galvanizing
- Advantages: smooth surface, good elasticity, high strength, and so on.
- Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
- Weaving process: cutting, stamping, bending, welding, forming.
- Advantages: strong, sturdy and smooth
- Years of use: 20-25 years
- Highly precise stainless steel Ball
- High sensitivity ,360 ̊ Active sealed stem
- No leakage guarantees dry of chicken manure
- Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
- 25# PVC round pipe
- Color: white ,green ,red or you request
- Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
- Characteristics: The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.durable, transport does not occupy the place, will not damage.The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food
- In front of poultry house there is a filter for water cleaning , a medicator and water meter
- Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
- The pressure reglator it can adjust pressure at the outlet and has a recoil function
The accessories for Cage Raised Chickens 3 tiers A type 180birds
►The cage raised chickens is application range for 1 day to 90days baby egg chicks
- Characteristic: It’s Specially designed and manufactured for egg chicks. 1-30days baby chicks feeding in the middle floor cages, 30-50days growing chicks in the top floor cages and The bottom of the cages are for rearing chicken 50-90 days
|Accessories Per Set cages|
|Tiers||3-tiers||Water drinker||6 pcs|
|Feeder||6 pcs||Water nipple with cups||36 pcs|
|Plastic mesh||6 pcs||Feeder though||12 m|
|Bin for installtion||750 pcs||Water pipe||12 m|
Comparative analysis cage raised chicken cages
240birds chicken rearing cages 4 tiers A type
Related Cage Raised Chickens equipment
- It can be equipped with auto the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture matic feeding equipment, automatic water supply system and automatic cleaning system to realize the specialization and automation of equipment.
- The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
- The Frame stands make five five pcs per bundle but they are bulk no package.
- Some fittings are in plastic bags or cartons
- LCL: first packed with plastic film then shipping by pallets
- FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
- The chicken equipment by pallets.
- Others packing and the poultry equipment according to customer requirement
- Battery chicken cage transportation
