Chicken Wire Cage 4-Tiers A Type 160 Birds

$188.00 $158.00

Rated 0 out of 5
(be the first to review)

Chicken wire cages 160 birds, the capacity total is 160 birds and has 40 cells per set. Hot dipped galvanized materials,strong A frame,with water drinking line

Description

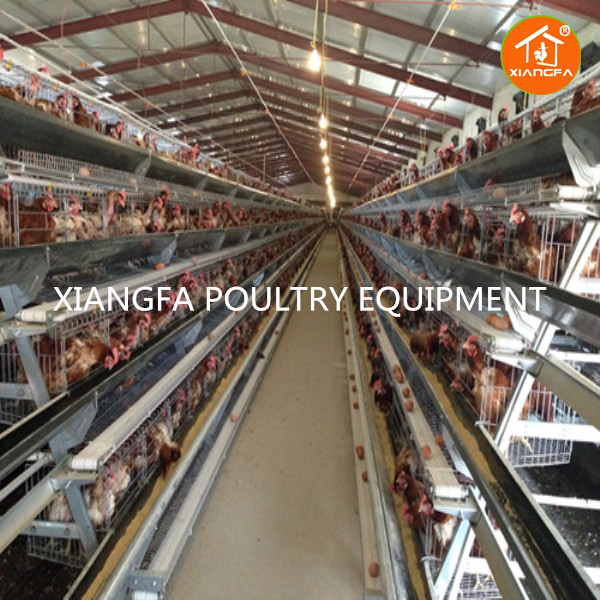

Chicken Wire Cages 4 Tiers “A” type 160birds

Chicken wire cages 160 birds 4 tiers “A” Type. It should be one completed set.Which is a combination of cage wire mesh, A type frame stand, water drinking line and chicken food line.total 160birds capacity and 40cells one unit. Hot dipped galvanized cage,frame very strong,It has save space ,save building cost and save labor cost.

The specification of chicken wire cages:

Item XFA4-160 Area/cell 1580 cm²
Tiers 4 Cell Dimension
cm
39.5*40*40
Chicken/cell 4 Area/chicken Area/chicken
Cell/set 40 Food chicken 9.875 cm

Performance of chicken wire cages:

1). Save space save house built cost labor cost
2). Hot-dipped galvanized cage frame system make the durability 15-20 years
3). Comfortable environment beautiful looking
4). Full automatic electric control system
5). Egg damage rate as low as 0.2%

Description of  Chicken wire cages 160 birds 4 tiers

  • Chicken wire cage mesh : consists of bottom, top, spaced cage mesh,door and special card wire.
    Material: Q 235 high quality unannealed steel wire
    Bottom of cage has 7 ̊ slope, the angle of inclination is reasonable, to ensure that the eggs roll gently and smoothly
    Weaving process: First welding and then bending
    Surface treatment: Hot dip or electroless galvanizing
    Advantages: smooth surface, good elasticity, high strength, low egg breaking rate and so on.
  • A frame of Chicken wire cages:
    Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6 mm thick steel flat
    Weaving process: cutting, stamping, bending, welding, forming.
    Advantages: strong, sturdy and smooth
    Years of use: 20-25 years
  • Water drinking line:
    Highly precise stainless steel Ball
    High sensitivity ,360 ̊ Active sealed stem
    No leakage guarantees dry of chicken manure
    Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
    25# PVC round pipe
  • Feeder though for Chicken wire cages:
    Material:PVC plastic or hot galvanized steel
    Color: white ,green ,red or you request
    Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
    Characteristics: durable, transport does not occupy the place, will not damage.
    The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food.
  • Front water Supply for chicken wire cages:
    In front of poultry house there is a filter for water cleaning , a medicator and water meter
    Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
    The pressure reglator it can adjust pressure at the outlet and has a recoil function
Chicken wire cages parts

Comparative analysis Chicken wire cages “A” frame types

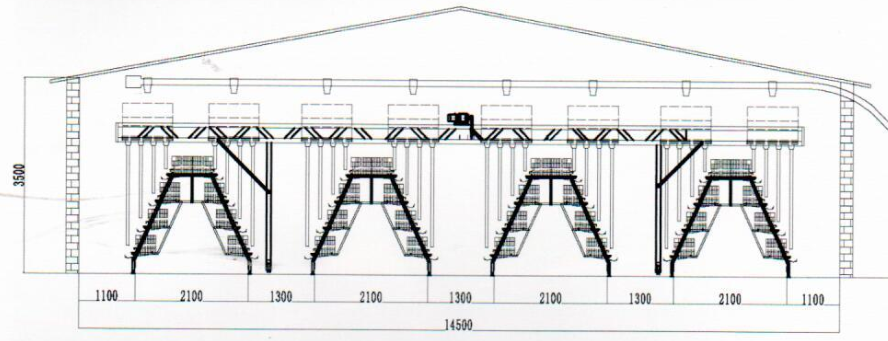

Standard layout of Chicken wire cages 160 birds 4 tiers “A”type

  • Unit Size:2460*1980*1860 mm
  • The use of 4 rows by 4 tiers 160 birds “A” type
  • The chicken house measures 100 meters long
  • 14.5 meters wide
  • 3.5 meters height in the room
  • 47 units per row
  • Breeding number of chickens is 30080 birds

Chicken wire cages design



















Battery chicken cage Model:XFA4-128/XFA4-150/XFA4-160


►Related Egg laying Chicken equipment

Use cooperatively A frame Egg laying Chicken Cage equipment produced by Xiangfa Company, it can realize the automatic feeding control system, the egg collection system, the automatic control of the scraper manure-clearing system, the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture
The following machine shoule be customer request:

Egg collecting machine Feeder trolley Chicken manure scraper


 ►Packing and delivery of Chicken wire Cages:

  • The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
  • The Frame stands  make five five pcs per bundle but they are bulk no package.
  • Some fittings  are in plastic bags or cartons
  • LCL: first packed with plastic film  then shipping by pallets
  • FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
  • The chicken equipment by pallets.
  • Others packing and the poultry equipment  according to customer requirement
  • Battery chicken cage transportation
Chicken wire Cages delivery
