Battery Chicken Cage 96 Birds

$128.00 $96.00

Rated 0 out of 5
(be the first to review)

Battery chicken cage 96birds 3tiers, It made from xiangfa company, it has 24cells,each cell take 4 birds , total 96 birds capacity. It should be one completed


Battery Chicken Cage 96 birds “A” Frame 3 tiers

Battery chicken cage 96 birds 3 tiers “A” type introduction:Battery chicken cage 96 birds 3 tiers “A” type, The cage capacity 96 birds and 24 cells, It has save space,save house built cost and labor cost.It should be one completed set. which is a combination of cage wire mesh, A type frame stand, water drinking line and chicken food line.
The size of battery chicken cages :

Item XFA3-96 Chicken Area 399.5
Size of frame mm 1880*2260*1560 Chicken food Area 11.75
Cells per set 24 Tiers 3
Cell Area 1598 cm² Capacity 96
1). Save space save house built cost labor cost
2). Hot-dipped galvanized cage frame system make the durability 15-20 years
3). Comfortable environment beautiful looking
4). Full automatic electric control system
5). Egg damage rate as low as 0.2%

Description of Battery chicken cage 96 birds A frame

  • Cage wire mesh : consists of bottom, top, spaced cage mesh,door and special card wire.
    Material: Q 235 high quality unannealed steel wire
    Bottom of cage has 7 ̊ slope, the angle of inclination is reasonable, to ensure that the eggs roll gently and smoothly
    Weaving process: First welding and then bending
    Surface treatment: Hot dip or electroless galvanizing
    Advantages: smooth surface, good elasticity, high strength, low egg breaking rate and so on.
  • A frame of battery chicken cages  :
    Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
    Weaving process: cutting, stamping, bending, welding, forming.
    Advantages: strong, sturdy and smooth
    Years of use: 20-25 years
  • Water drinking line:
    Highly precise stainless steel Ball
    High sensitivity ,360 ̊ Active sealed stem
    No leakage guarantees dry of chicken manure
    Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
    25# PVC round pipe
  • Feeder though for battery chicken cage:
    Material:PVC plastic or hot galvanized steel
    Color: white ,green ,red or you request
    Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
    Characteristics: durable, transport does not occupy the place, will not damage.
    The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food.
  • Front water Supply for the battery chicken cage:
    In front of poultry house there is a filter for water cleaning , a medicator and water meter
    Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
    The pressure reglator it can adjust pressure at the outlet and has a recoil function
Battery chicken cage parts

Comparative analysis battery chicken cage “A” frame types

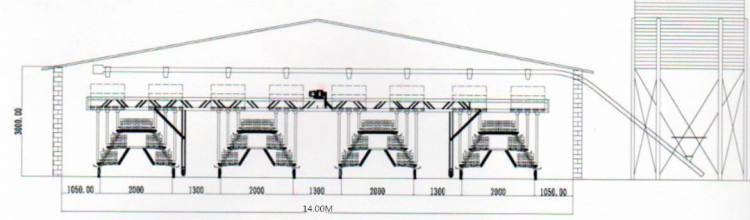

Standed layout of battery chicken house 96 birds 3 tiers “A”type

  • Capacity 18048 birds
  • The use of 4 rows by 3 tiers 96 birds “A” type
  • The chicken house measures 100 meters long
  • 14 meters wide
  • 2.7 meters height in the room
  • 47 units per row
  • Breeding number of chickens is 18048 birds

Battery chicken cage design

Battery chicken cage Model:XFA390/XFA396/XFA3120

►Related layer chicken cage equipment

Use cooperatively A frame layer battery chicken cage equipment produced by Xiangfa Company, it can realize the automatic feeding control system, the egg collection system, the automatic control of the scraper manure-clearing system, the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture
The following machine shoule be customer request:

Egg collecting machine Feeder trolley for battery chicken cage  Chicken manure scraper

 ►Packing and delivery:

  • The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
  • The Frame stands  make five five pcs per bundle but they are bulk no package.
  • Some fittings  are in plastic bags or cartons
  • LCL: first packed with plastic film  then shipping by pallets
  • FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
  • The chicken equipment by pallets.
  • Others packing and the poultry equipment  according to customer requirement
  • Battery chicken cage transportation
Delivery of Battery chicken cages
