H type Broiler Cage 3 Tiers Semi 72 Birds

$148.00 $78.00

Rated 0 out of 5
(be the first to review)

Hebei xiangfa Poultry equipment Co., Ltd.

  • PAYMENT TERMST / T,L / C,Westerm Union,MoneyGram

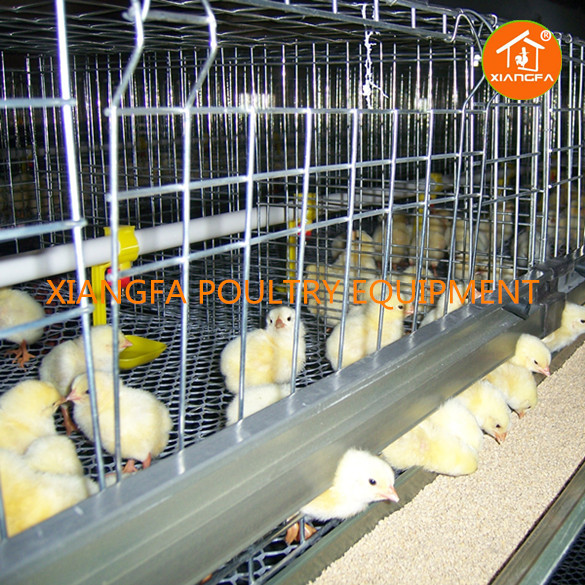

Broiler Cage 3 tiers 72 birds H type Semi

Broiler Cages 72 Birds 3 layers Semi H type Specification:

It designed for broiler cage,The structure is reasonable, small area, simple installation, suitable for small and medium-sized farmers . but for the feeding and manure removal need some one by hand .It should be one completed set. 3 tiers of cage mesh, and 72 birds capacity. H frame stand, with nipple drinkers and feeder trough
The cage size: 1400*700*1450 mm ,6 cells, each cell area 4900 cm2,each birds  Area :408 cm2

Performance Broiler  Cages :

  • Zinc-plated low carbon steel wire has strong tensile and compressive properties.
  • It is convenient to observe the growth of chicks, which is convenient for grouping and selection.
  • Automatic timing and clearing of feces effectively reduces the disease infection rate and mortality of chicks.
  • The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.
  • Chicken feeding per unit area has increased by 50%-100%.
  • The pressure regulator can adjust the water pressure to a certain amount, and the water supply of each nipple drinker is evenly distributed to ensure sufficient water supply for the chicks.

Structural Characteristics of Broiler  Cages

Broiler  Cages wire mesh :

consists of bottom, top, spaced cage mesh,door and special card wire.

  • Weaving process: First welding and then bending
  • Surface:Galvanized or as your request
  • Shape: “H” type
  • Capacity: 72 birds/set
  • Usage: cage for broiler breeding from one days old
  • Advantages: smooth surface, good elasticity, high strength, and so on.

►Frame of Broiler  Cages :

  • Material:U Type rectangular tube with hot galvanized ,Angle Iron or 6mm thick steel flat
  • Weaving process: cutting, stamping, bending, welding, forming.
  • Advantages: strong, sturdy and smooth
  • Years of use: 20-25 years

►Water drinking line:

  • Highly precise stainless steel Ball
  • High sensitivity ,360 ̊ Active sealed stem
  • No leakage guarantees dry of chicken manure
  • Installation, disassembly,convenient and cleaning is easy no need for glue and bonding
  • 25# PVC round pipe

►Feeder though for Broiler Cages:

  • Color: white ,green ,red or you request
  • Plastic food trough : raw polyethylene materials, super toughness, with anti-fall, anti-pressure, anti-aging
  • Characteristics: The trough is equipped with an adjustment plate, which can effectively meet the chick feeding at different growth stages, and has sufficient feeding, eating position, uniformity and health of the chicken.durable, transport does not occupy the place, will not damage.The design of the long groove edge of the feeder though is very good, which reduces the waste of the chicken food

►Front water Supply for Broiler  Cages:

  • In front of poultry house there is a filter for water cleaning , a medicator and water meter
  • Pressure regulator Concentration of chemical feeder is adjustable and the water meter is numerable
  • The pressure reglator it can adjust pressure at the outlet and has a recoil function

Professional For Broiler  Cages

►The Broiler  Cages  is application range  for 1 day to 70 days  broiler chicken

  • Characteristic: It’s Specially designed and manufactured for broilers. 1-20 days baby chicks feeding in the middle  floor cages, 25-40 days growing chicks in the top floor cages and The bottom of the cages are for rearing broilers 40-70 days
    Accessories Per Set  Cages
    Tiers 3-tiers Water drinker 2 pcs
    Feeder 2 pcs Water nipple with cups 12 pcs
    Plastic mesh 6 pcs Feeder though 4.5 m
    Dung tray 6 pcs Water pipe 4.5 m

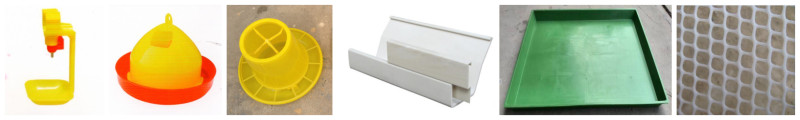

Acceseries of Broiler cages

Comparative Analysis Broiler  Cages

Related Broiler  Cages  Equipment

►The following machine shoulde be customer request:

  • It can be equipped with auto the operation is convenient, the labor productivity is improved, the economic benefit is high, and it is suitable for large-scale Laying hen culture automatic feeding equipment, automatic water supply system and automatic cleaning system to realize the specialization and automation of equipment.

 ​►Packing and delivery of  Broiler Cages :

  • The bottom and top cage wire mesh make 6 pcs one bundle, The partition cage wire mesh make 12 or 15 pcs one bundle,the doors make 12 pcs or 60 pcs one bundle but they are bulk no package.
  • The Frame stands  make five five pcs per bundle but they are bulk no package.
  • Some fittings  are in plastic bags or cartons
  • LCL: first packed with plastic film  then shipping by pallets
  • FCL: The cage mesh and frame stand make by bundles ,and the accessories packing by plastic bag or cartons,
  • The chicken equipment by pallets.
  • Others packing and the poultry equipment  according to customer requirement
  • Battery chicken cage transportation

broiler cages
