Chicken Feed Machine Automatic

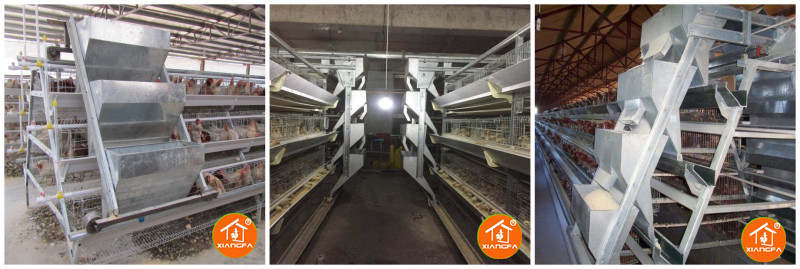

Chicken feed machine automatic is mainly composed of driving parts (traction parts),material box feeding pipe and other components. The driving part is installe

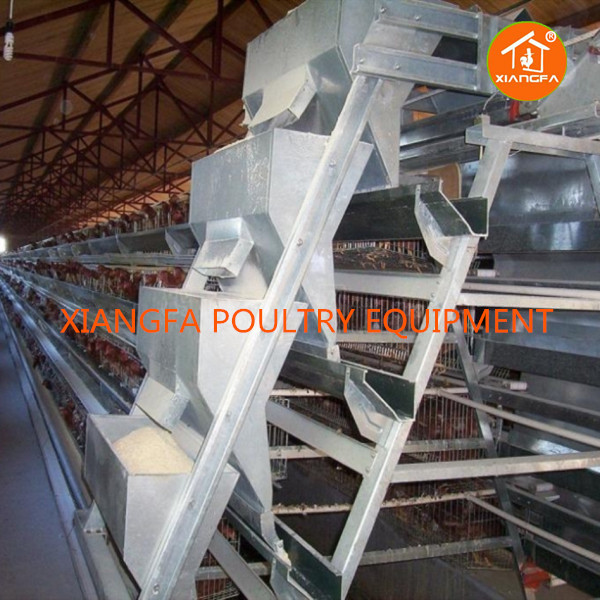

Chicken Feed Machine Automatic System
►Chicken feed machine Automatic introduction:
- Frame head tail and frame
- Chicken food transport device
- Auger type upward feeding transport device
- Power: 2.2 KW
- Material: Hot deep galvanization sheet
- Request a three-phase electricity industry
►Parts of automatic chicken feed machine trolley:
- Feed lifting system, Feed transportation system and walking system
- The chicken food machine is mainly composed of driving parts (traction parts), material box feeding pipe and other components. The driving part is installed on one end of the track, and the motor reducer pulls the material box along the track through the driving wheel wire rope to complete the feeding operation
►The chicken feeding machine technical parameters:
- The conveying capacity is 1000～1200kg/h; the supporting power range is 0.55～1.1kW; the driving forward speed is 6～18m/min; the feeding capacity of the material tank is 150~210kg for the top tank and 40～60kg for the cage box.
►The equipment characteristic of Auto chicken feed machine trolley:
- Direct pushing, safe, convenient, energy-saving, no noise, small chicken response, the first in the world.
- 10,000 chickens can complete a feeding in 40 minutes.
- 60,000 chicken farms can use a feeding machine.
- Than the chain feeder energy-saving 85% price is his one-tenth.
- Than the overhead feeder energy-saving 95% price is one-eighth of it.
- One chicken food machine can replace the work of more than a dozen people, reduce labor, improve farming levels and breeding benefits.
- The feeding machine can automatically turn, advance, retreat and walk freely, can walk freely in the chicken house.
- The height of the powder auger can be adjusted and can be freely retracted on both sides until the base material is placed in the trough
- The feed is less wasteed, the feeding is uniform, and the feeding amount can be adjusted according to the running speed of the feeding machine.
►The working principle of chicken food machine trolley:
- Chicken feed machine has different configurations according to the form of the chicken cage, but each row of the food trough is straddled by a small rectangular box, the lower part of the box is in the shape of an inclined cone, with a conical flat mouth sitting in the food trough. When the driving part drives the cross cage to move along the track of the chicken cage, the feed will fall down into the food trough along the cone surface to complete the feeding operation.
