Egg Collecting Machine For Chicken

$1,200.00 $850.00

Rated 0 out of 5
(be the first to review)

Egg collecting machine it’s good for layer 3, 4 ,5 tiers cages, the design is simple but stable and easy to operate. It can save energy and manpower with high

Description

Egg Collecting Machine For Layer Chicken Cages

►Specifications of egg collecting machine:

  • Machine Size: (2.2-2.8)*(1..0-1.5)*(2.0-2.6)m
  • Rated Power: 0.75-3.0 KW
  • Egg Collection Qty/H: 3000 pcs
  • Working Type: 4 tiers working together
  • Rated Voltage: 380 V
  • Egg collecting belt width: Belt=100 mm

►Design of egg collecting machine:

  • Two side design with nylon belt

►Characteristics of egg collecting machine:

  • It’s good for layer 3 4 5 tiers cages, the design is simple but stable and easy to operate. It can save energy and manpower with high working efficiency low egg break rate

►construction features of egg collecting machine:

(1) components:

this machine is composed of egg uploading system, soft broken egg filtering system, egg collecting belt and egg front collecting system

(2) base:

the frame is welded with high-quality c-shaped steel. The frame is designed by engineers who have many years of experience in structural design

(3) egg uploading system:

the egg uploading system is driven by a hollow worm gear reducer with high transmission efficiency, which is driven without loss. The failure rate is low, the life is long, the operation is stable and the noise is small, which can reduce the impact of noise on chickens and improve the egg production rate

(4) soft broken egg filtration system:

the transmission mechanism of the soft broken egg filtration system adopts chain, sprocket transmission, and the transmission is smooth. This system is mainly installed according to the needs of customers to leak soft eggs into the soft egg tray below to prevent the broken egg mucus from sticking to the uploading system during the transportation of soft eggs and contaminate the finished eggs

(5) the egg egg belt and sets belt drive system:

by the transmission efficiency of hollow worm gear speed reducer drive, thus ensure the egg conveyor belt running smoothly drive roller is made of high quality rubber, increased the friction with the conveyor belt, to prevent losing send slip-adjusting conveyor belt skid and is made of high quality material, has good abrasion resistance decorative pattern on the surface of the long life prevent eggs in the retention phenomenon occurred in the process of delivery

(6) egg front-end collection system:

the main purpose is to collect eggs from the uploading system.Ensure that the egg rolls properly and does not allow egg retention.

(7) power distribution system:

the power distribution system is designed by professional electrical engineers with national standard electrical appliances.Save manpower, easy to manage. Also according to the user’s needs to design a variety of electrical control systems.


For more information on chicken farming equipment:

Using layer chicken cage equipment produced by xiangfa company, the automatic control of feeding system, egg collecting machine system and chicken manure removal cleaning system can be realized, which has the advantages of easy operation, higher productivity and higher economic benefits

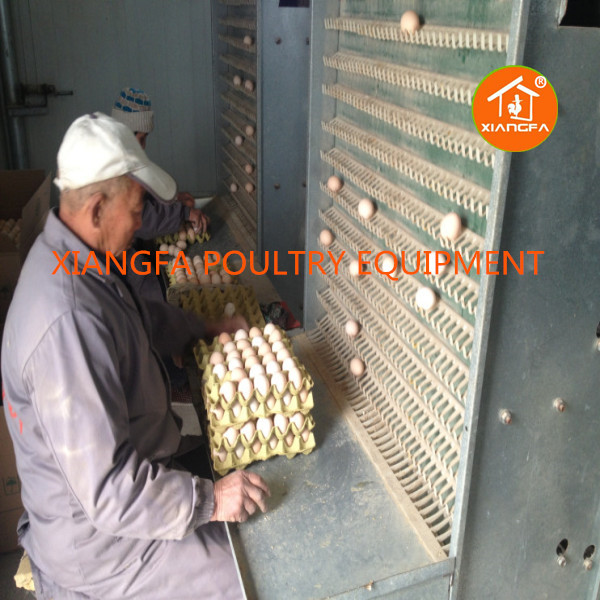

Egg collecting machine for layer chicken cage

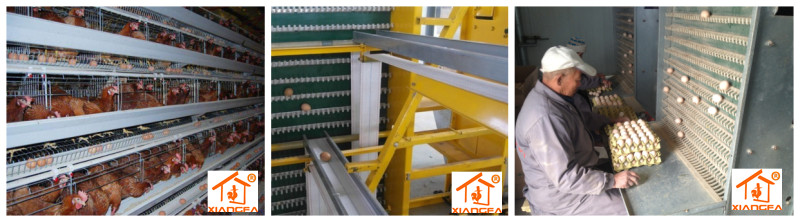

Egg collecting machine for chicken cage
