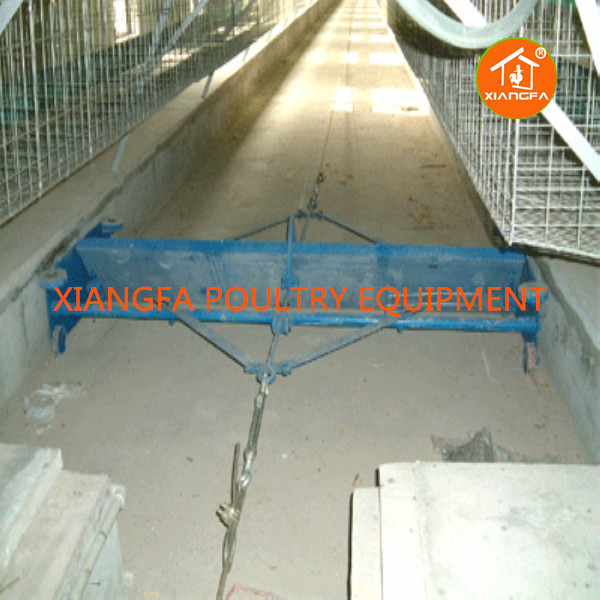

Manure Scraper System For Chicken Farm
Manure scraper system of A frame layer chicken farm configuration: Remove panel scraper; Motor machine;Power:380V, Accessories：wheels ropes nuts and so on
Description of Manure Scraper System
- Remove panel scraper:8 mm thick steel sheet
- Motor machine: 220 V single-phase power supply and 380 V three-phase power supply output optional
- Accessories :Wheels ropes nuts and so on
- Manure waste:Make hollows and space for manure removal system
- Ground: Concrete floor
- Application:Bring chicken dropping outside house
The kinds of manure scraper system:
One main engine run 1 scrapers/run 2 scrapers/run 3 scrapers /run 4 scrapers

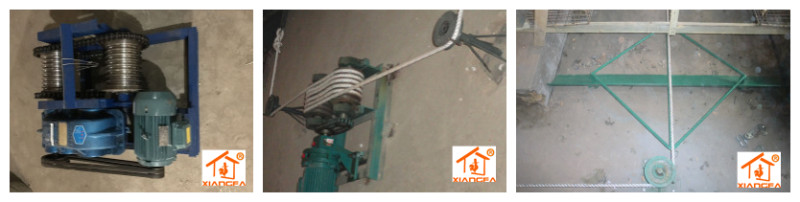

Structural characteristics of manure scraper
The scraper adopts a full set of hot dip galvanizing technology and is made of high-quality steel plate, which has the characteristics of corrosion resistance and long service life.
It is made of high-quality carbon bonded steel, with long wear life.
The chain adopts crane chain
corrosion resistant, high strength, long service life and free of maintenance.
The corner wheel and built-in bearing extend the service life of the equipment,
prevent the tray from falling off, solve the problem of the traction rope, and make the equipment work normally.
Advantage of manure scraper system
It can realize unmanned management, automatically clear the feces at any time, set the time arbitrarily, and the operation is simple and quick;
Manual temporary defecation,
Easy and fast operation, automatic manual conversion;
Multi-stage power transmission,
Increase friction, strong power;8 mm round scraping board design, scraper automatic retracting, adjustable board position, small friction, clean feces clean;
Double tight rope
Mechanism makes the tight rope easier; 45# steel processed power wheel and driven wheel will never be damaged; anti-slip protection alarm device protects your traction rope Not damaged
One main engine
It can run 1-4 scraping slabs, the longest scraping stroke is 140 meters, and the steel rope and polypropylene rope pulling method can be selected.

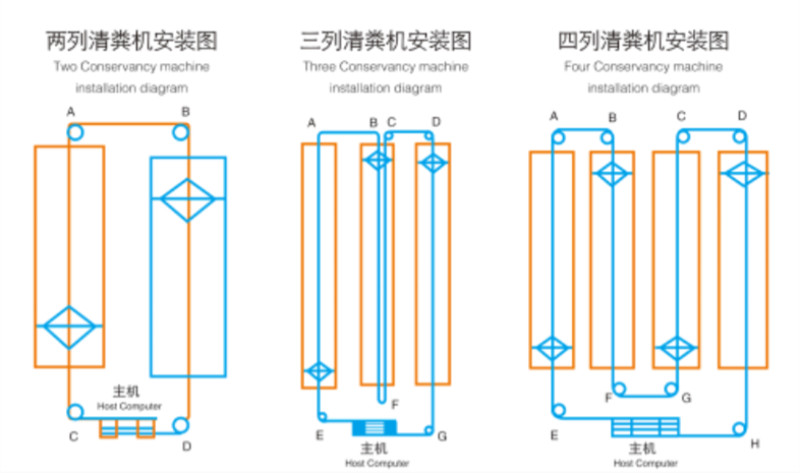

Installation drawing of manure scraper system
